The Static Balancer literally does not require any rotation for balance measurement
“No Rotation Required” signifies:
・ No need for extra power “Energy saving”
・ Quick Operation (Measuring) Time “Quick Cycle Time”
・ No accidents from operators caught in the machine ”Safe Operation”
・ Fewer components to assemble “Low-cost production & maintenance”

The original Static Balancers have continuously been highly evaluated in various industries, such as Automotive,
Aircraft and Ship building.

In fact, the superior rigidity of the structure keeps many machines more than 20 years-old perfectly active in service. This proven technology has long established itself as providing superior balance quality control and a long
life-cycle at a minimum cost to the customer.

We have been and will provide various customizations per requirements based upon the successful balance technology.

Used in the following applications:

Torque converter components

・Brake disks/drums　・Flywheel

・Impeller・Runner　Pulley

・Gear wheels　・Aluminum Wheel

・Jumbo Aircraft Tires

・Automotive Tires

・Motorcycle tire/wheel assemblies

・Helicopter blades

・Whetstones

Used in the following applications:
Examples of Available Models

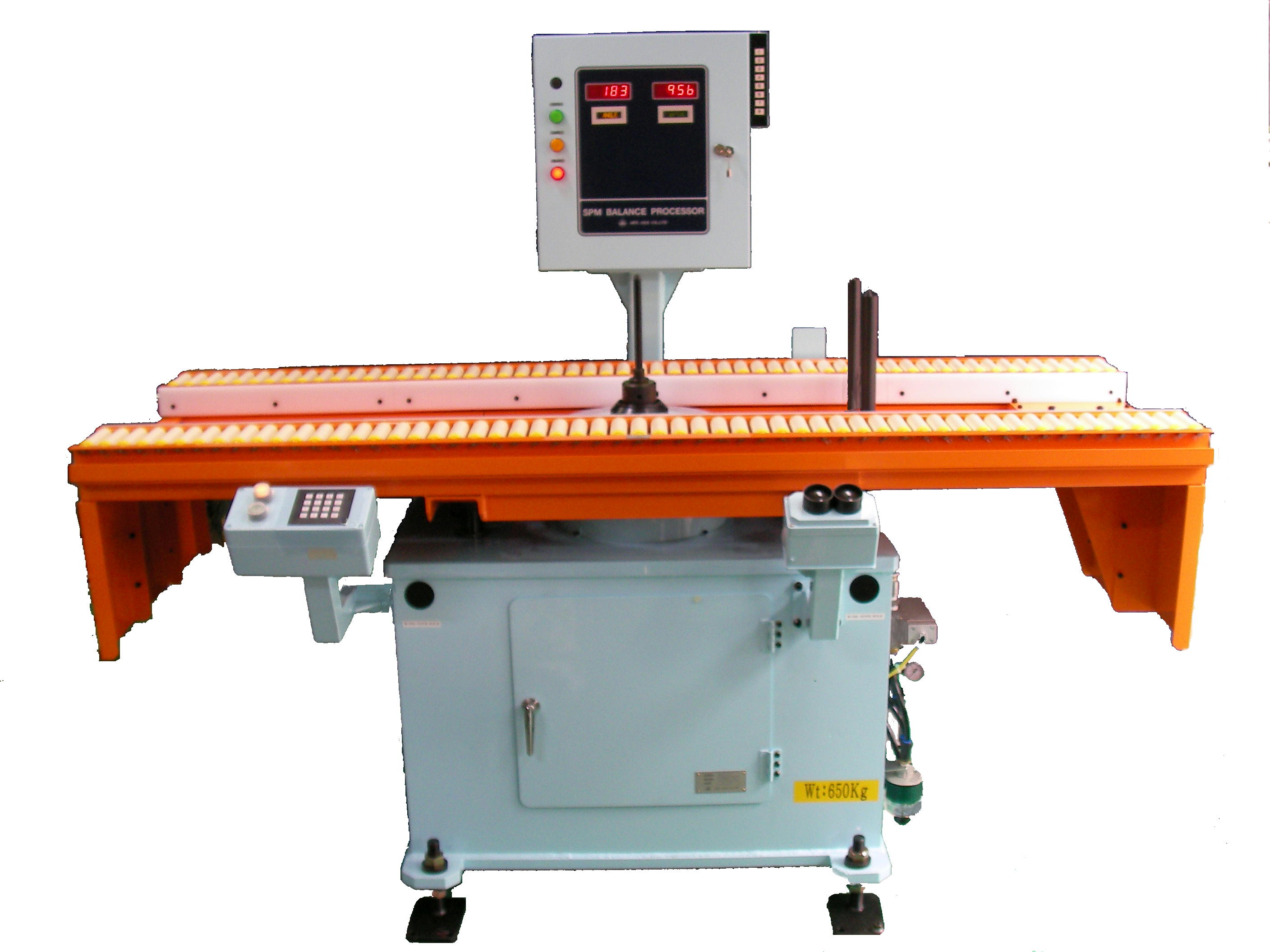

SPM STATIC BALANCER

Our static balancer uses the original Stiff-Pivot mechanism.
The special pin called “Stiff Pivot” generates a minute tilt by an imbalance. The tilt information is then translated in the electric signal to let the operator know the location and amount of the imbalance. This unique system has superior accuracy and repeatability beyond the rotational balancers that amplify the imbalance using centrifugal force.
Over 50 years, the system has been highly evaluated in various industrial fields such as automotive components, tires and machinery parts. This method can flexibly satisfy the applications for helicopter blades, heavy work- piece and any components where the preference is to avoid any rotational force loads.

※POWER：150VA　50/60 Hz

SPM STATIC BALANCER

HELICOPTER TAIL BLADES

SPM STATIC BALANCER

TAPER-CONE TOOLING

SPM STATIC BALANCER

BALANCER FOR MOTOR CYCLE TIRE ASS’Y

SPM STATIC BALANCER
SPM Series Specifications
The Pivot pin thickness changes per the work-piece weight ranges.
  SPM-501 SPM-502 SPM-50L2 SPM-503 SPM-504
STIFF PIVOT 3/16" 1/4" 5/16" 3/8" 1/2"
BALANCE SENSITIVITY　gr-cm 0.3 1 2.5 5 15
BALANCE ACCURACY　gr-cm ±1 ±2 ±4 ±10 ±30
MAX. PART WEIGHT（Ref.） kg 5 10 20 30 60
MAX. BALANCE MOMENT　gr-m 1.2 4 7 13 30
MEASURING CYCLE TIME　sec 3～ 3～ 3～ 4～ 4～
